Impianti MPA

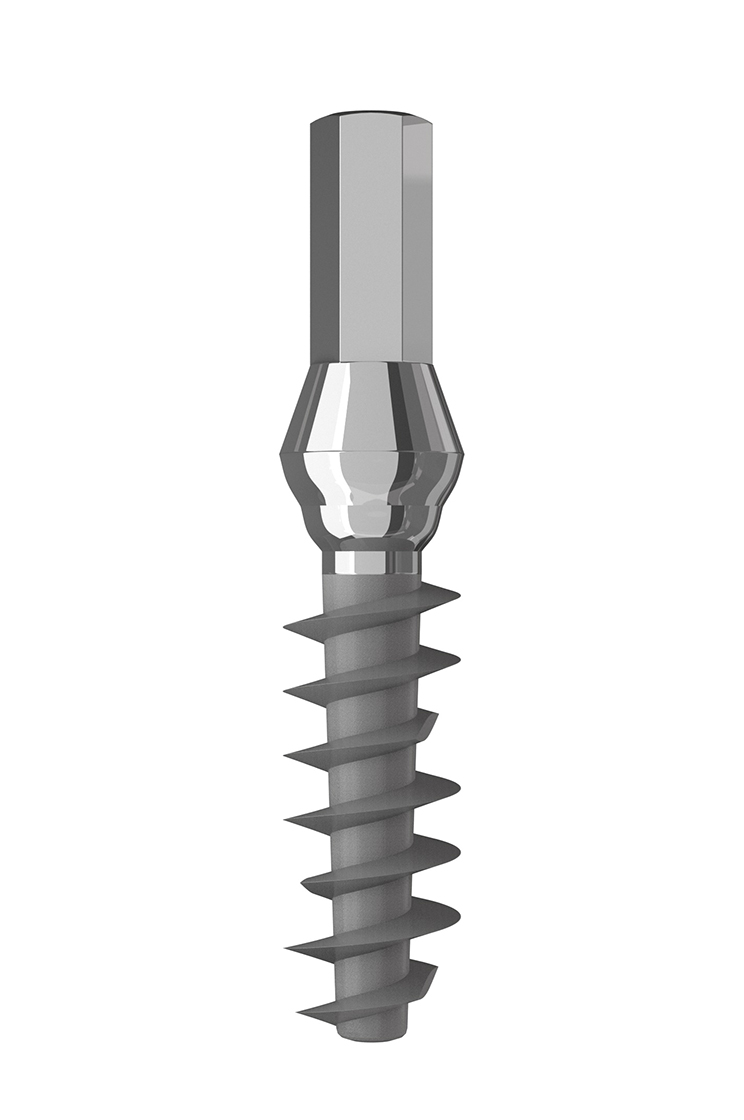

Impianto monofasico con esagono diametro 2,98 mm, h 6,5 mm.
Impianto caratterizzato da una parte emergente da 12,00 mm.
Spira adatta al carico immediato in quanto determina elevata stabilità primaria all’inserimento.
Corpo cilindrico a sezione apicale arrotondata.
|
REF IMPIANTO MONOFASICO : MPA |
DIMENSIONI : DIAMETRO – LUNGHEZZA |
|
MPA3008 |
3,0 – 8 mm |
|
MPA3010 |
3,0 – 10 mm |
|
MPA30115 |
3,0 – 11,5 mm |
|
MPA3013 |
3,0 – 13 mm |
|
MPA3015 |
3,0 – 15 mm |
|
MPA4006 |
4,0 – 6 mm |
|
MPA4008 |
4,0 – 8 mm |
|
MPA4010 |
4,0 – 10mm |
|
MPA40115 |
4,0 – 11,5 mm |
|
MPA4013 |
4,0 – 13 mm |
|
MPA4015 |
4,0 – 15 mm |
|
MPA4018 |
4,0 – 18 mm |
|
MPA5006 |
5,0 – 6 mm |
|
MPA5008 |
5,0 – 8 mm |
|
MPA5010 |
5,0 – 10 mm |
|
MPA50115 |
5,0 – 11,5 mm |
|
MPA5013 |
5,0 – 13 mm |
|
MPA5015 |
5,0 – 15 mm |
|
MPA6006 |
6,0 – 6 mm |
|
MPA6008 |
6,0 – 8 mm |
|
MPA6010 |
6,0 – 10 mm |
|
MPA60115 |
6,0 – 11,5 mm |
|
MPA7006 |
7,0 – 6 mm |
|
MPA7008 |
7,0 – 8 mm |
|
MPA8006 |
8,0 – 6 mm |
|
MPA8008 |
8,0 – 8 mm |
